LED, from all-in-one screens to custom walls

Dline LED spans the full range, from finished all-in-one displays for meeting rooms to custom modular video walls for retail and public spaces. Cinema-grade indoor picture, up to 6500 nits outdoors, and panels built to any size or shape. Android and Dline CMS throughout, designed and installed by Slimline in Melbourne.

columns
All-in-one displays to 162" Portable foldable LED Indoor modular video walls Outdoor walls up to 6500 nits Any size, curves and corners Android with Dline CMS Designed and installed for you Melbourne-backed support

What is an LED display?

An LED display builds its image directly from light-emitting diodes, rather than backlighting an LCD panel. That means brighter visuals, deeper blacks and a seamless, bezel-free picture at large sizes. It comes in a few forms:

• All-in-one. A finished LED screen in a fixed size, ready to mount or roll in and use.

• Modular. Panels that combine into a video wall of almost any size or shape, indoor or outdoor.

• Foldable. A portable, large-format LED display that folds down for transport and events.

LCD vs LED, explained

The two display technologies both build a picture , but in different ways, which changes what each does best. LCD uses a backlit liquid crystal panel. LED tiles pixels into seamless, large-format surfaces.

columns
Category	LCD displays	LED displays
Technology	Liquid Crystal Display	Light Emitting Diode
How it works	Liquid crystal layer with backlight	Thousands of individual LED pixels
Built for	Close-range, fixed sizes	Scale, brightness, large format
Image	Sharp Full HD and 4K	Ultra-bright, seamless, bezel-free
Sizing	Fixed panel sizes	Scalable to custom sizes
Viewing	Close-range	Long distance
Touch	Available	Not typically
Best for	Retail signage, menu boards, kiosks	Video walls, outdoor, stadiums

In short, choose LCD for close-range detail, touch and standard sizes, and LED for scale, brightness and seamless, large-format visuals. Our LCD ranges cover the first; this LED range covers the second.

The LED range

Four ways to go LED. LED spans four product types, from a finished screen you present from to a custom wall built panel by panel. Start by matching the type to your space:

columns
Type	What it is	Best for
All-in-one LED	Finished screen, up to 162"	Boardrooms, training, auditoriums
Foldable LED	Portable large-format display	Events, exhibitions, activations
Indoor modular	Fine-pitch video wall panels	Retail, corporate, museums
Outdoor modular	All-weather video wall panels	Facades, public spaces, landmarks

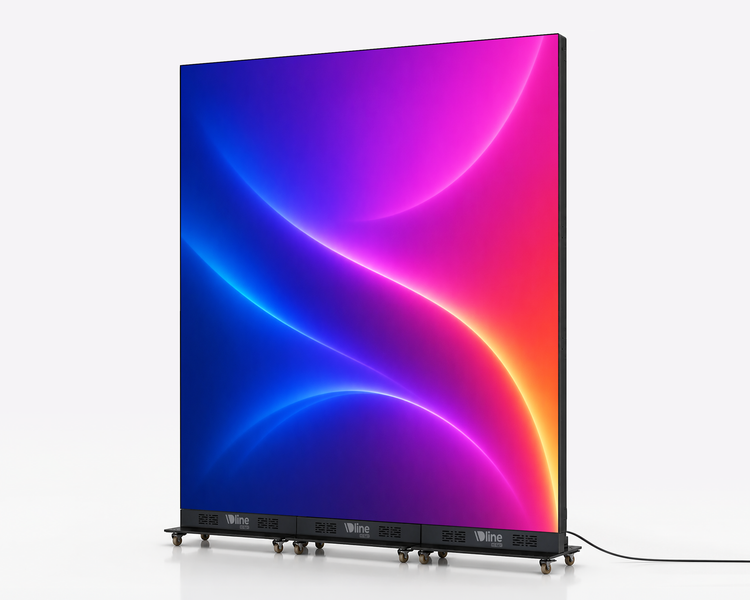

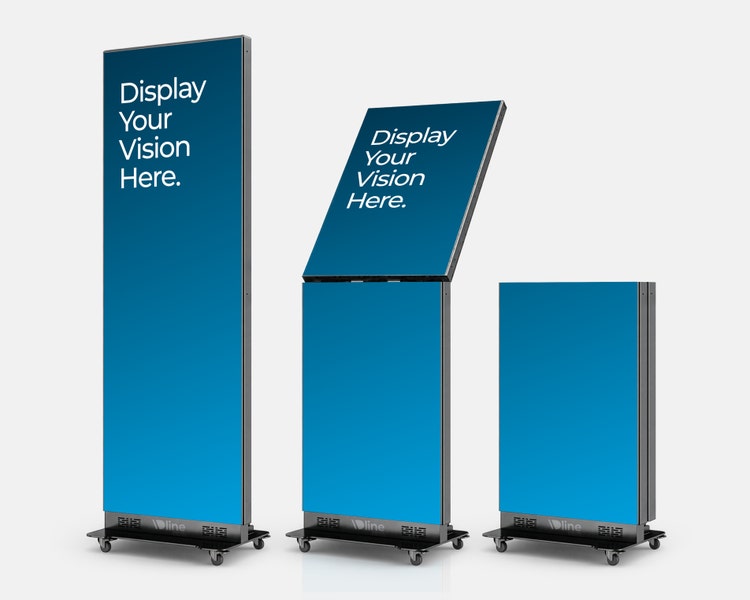

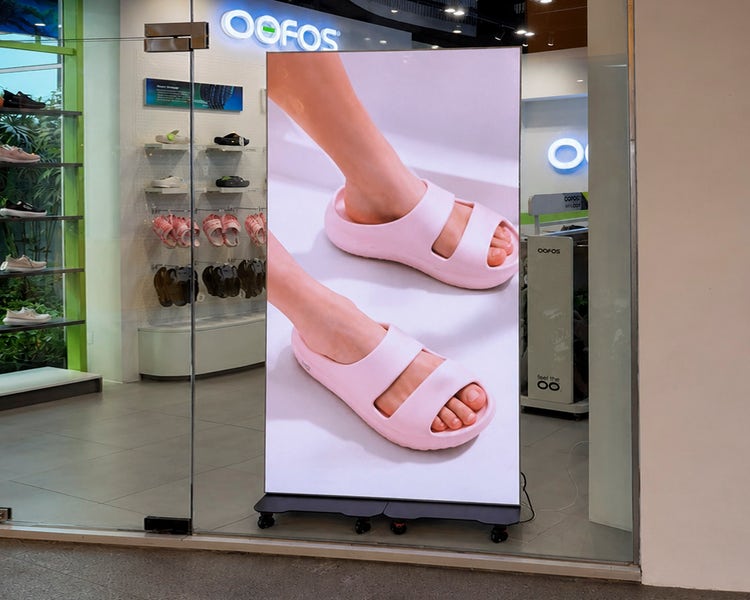

Foldable LED display

Large-format LED impact in a portable, foldable form. Designed to be transported, stored and set up with ease, it suits temporary installs and event environments. When the job is done, it folds into a compact shape for easy handling and storage.

• Built to move. A folding design simplifies transport, storage and deployment between sites.

• Event-ready. Suited for exhibitions, presentations, activations and pop-up environments.

• Full impact. Large-format visuals without the fixed installation of a permanent wall.

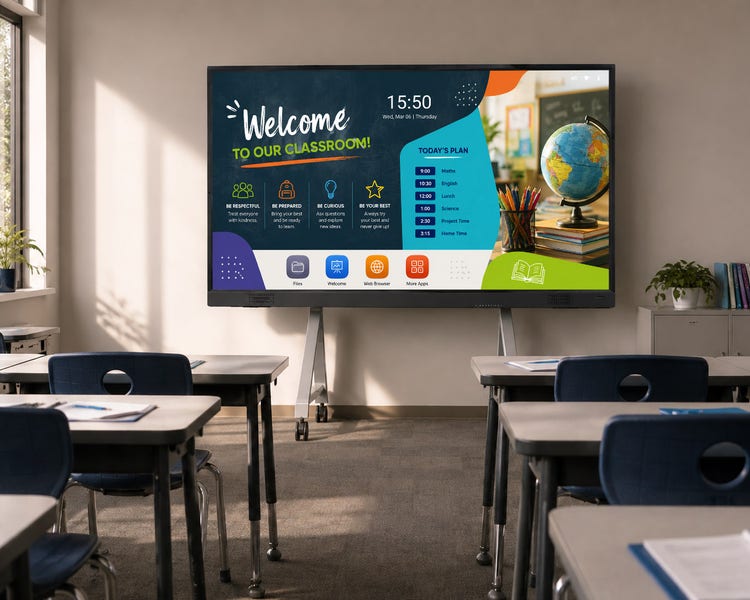

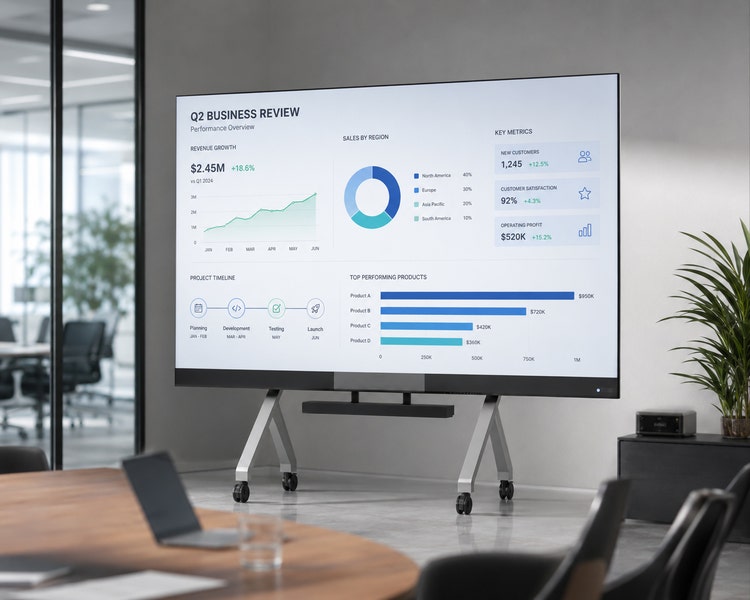

All-in-one LED display

Cinema-grade LED that transforms how you present. without the complexity. A single, finished display up to 162 inches, with deep blacks that hold up in bright boardrooms and zero flicker for long sessions. Walk in with your phone, cast wirelessly and present instantly.

• Picture you see immediately. 10,000:1 contrast with COB LED and EBL+ optical processing cuts glare by up to 50%.
• Present from anything. Cast wirelessly from laptops, tablets or phones, up to nine devices at once. HDMI inputs on request.
• Comfortable for long sessions. 3840 Hz flicker-free refresh with low blue light, and a wide viewing angle across the room.
• Sound built in. Integrated full-range speakers with built-in amplification, no external hardware.

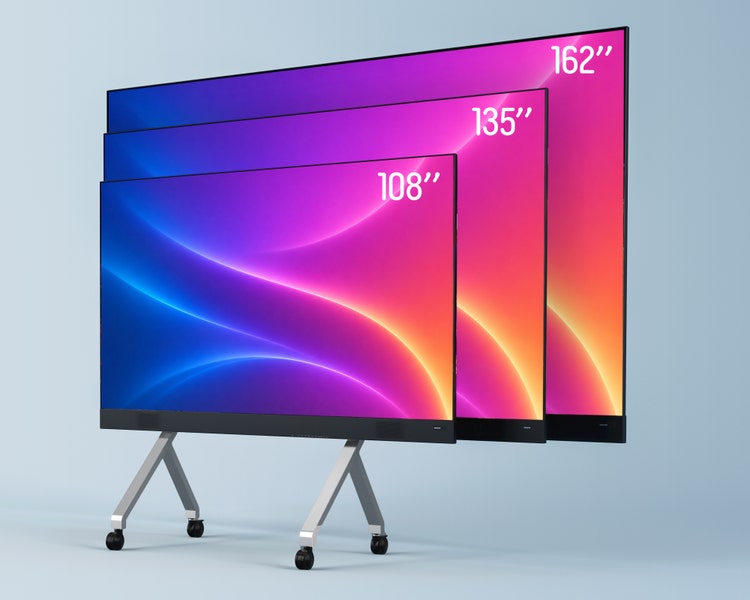

Three sizes, matched to the room:

columns
Model	Size	Best for	Audience
DLTV108	108"	Small to medium meeting and training rooms	10 to 20
DLTV135	135"	Medium rooms and larger training rooms	20 to 50
DLTV162	162"	Large rooms, halls and auditoriums	50 to 100

Note: Viewing distances are indicative and depend on room layout, content and pixel pitch.

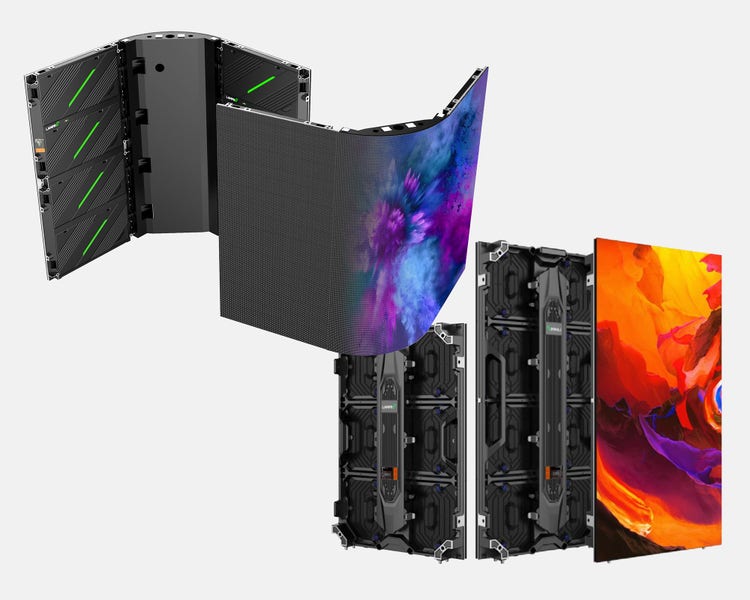

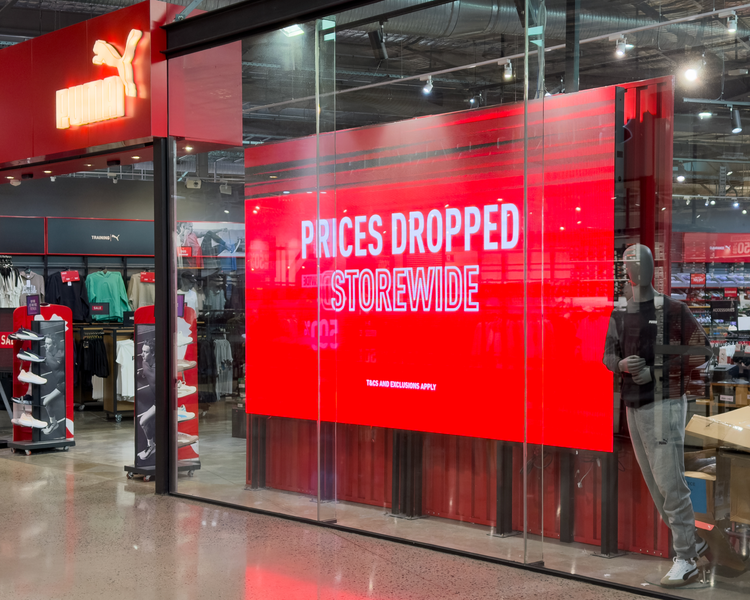

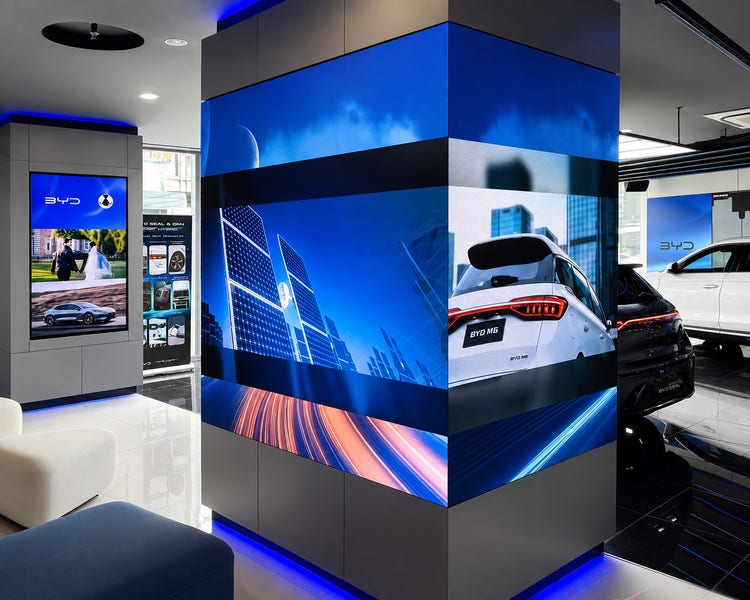

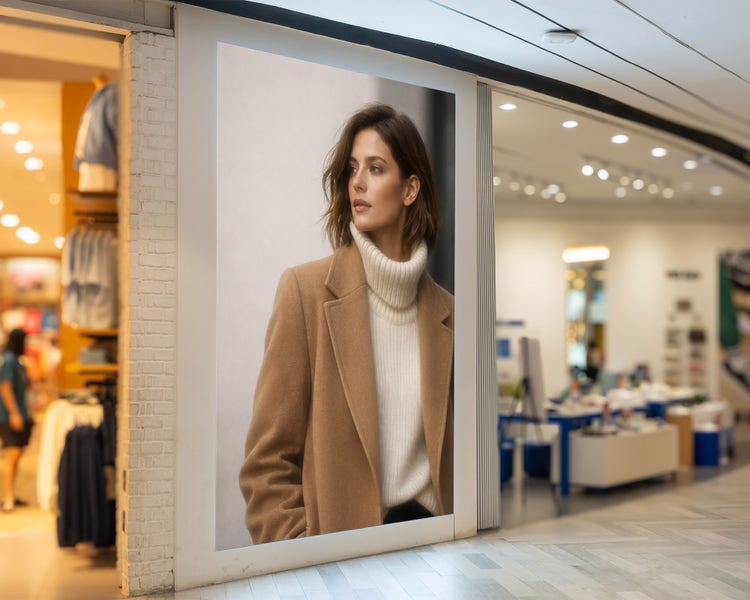

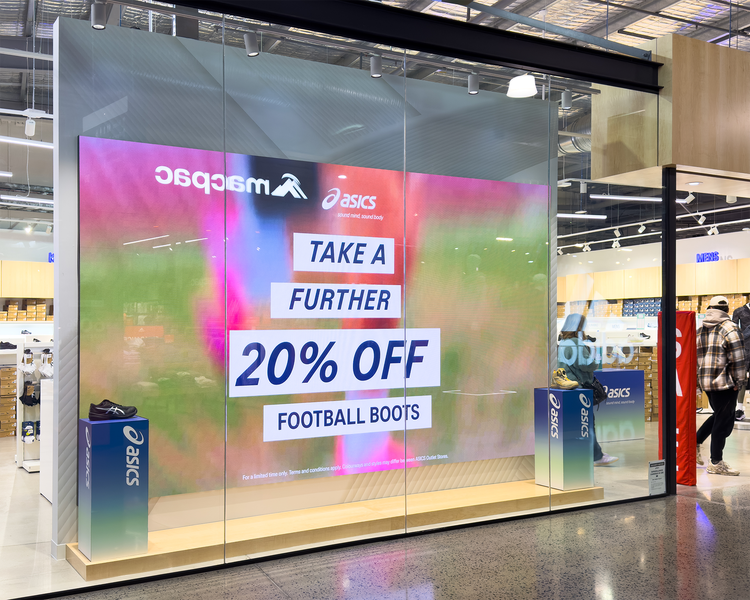

Indoor modular video walls

Seamless, bezel-free visuals at wall size, built your way. Modular panels combine to create flat walls, wrapped corners, curves and columns. At 40mm slim and made from lightweight die-cast aluminum, they install by wall mount, floor stack or ceiling hang, with front or rear access.

• Mixed panel sizes. Combine dimensions to fit your exact space, with no filler panels.
• Curve and rotate. Form curves with ±5° flexibility, or rotate panels 90° for creative layouts.
• Fine detail. Pixel pitches of P1.5, P1.9, P2.5 and P3.9, 5000:1 contrast and a 155° viewing angle.
• Smart diagnostics. Built-in monitoring tracks temperature, signal, working time and voltage.

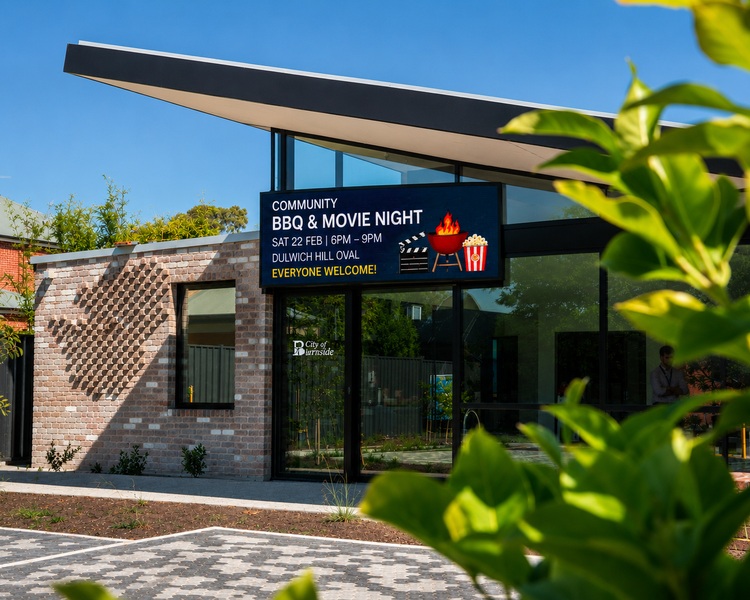

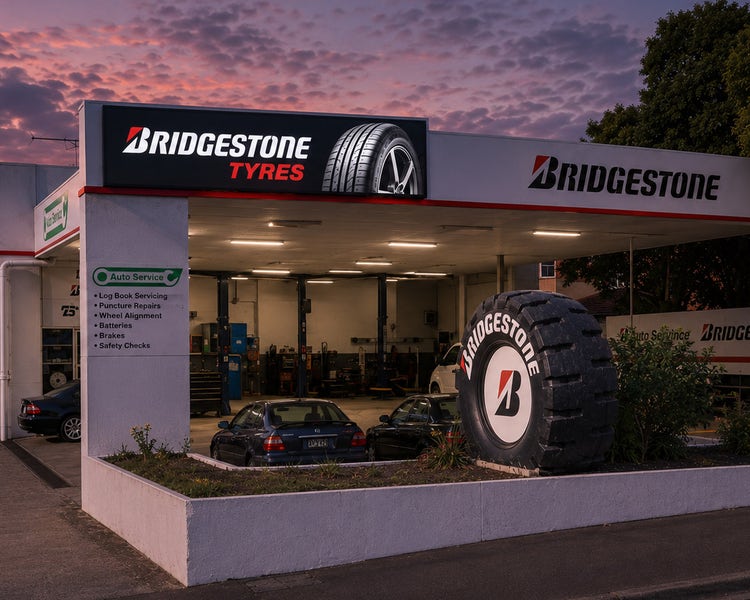

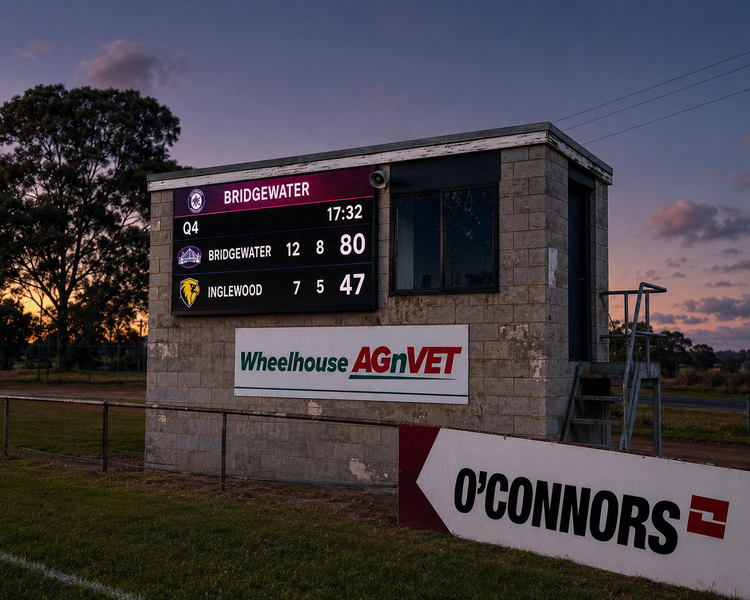

Outdoor modular video walls

Daylight-visible LED walls built to last, engineered for all weather conditions. Up to 6500 nits for full sun, with custom dimensions from modular cabinets built to your specifications. Permanent mounting to facades, freestanding structures and architectural installations.

• Two series. Gold Wire (DLGOD) up to 6500 nits for landmark, high-exposure sites; Copper Wire (DLCOD) at 5000 to 5500 nits for cost-effective standard outdoor use.
• Matched pixel pitch. 2.5mm to 4.0mm, matched to viewing distance.
• Long signal runs. Cat5 to 100m, or fibre to 10km, with a -20°C to +50°C operating range.

What Slimline delivers

A video wall is a project, not just a product. For modular indoor and outdoor walls, Slimline handles it end to end:

• Site scoping and viewing-distance advice
• System design: size, pixel pitch and mounting method
• Supply of display, control equipment and mounting
• Installation and commissioning
• Content platform setup and training
• Ongoing support and a spare-parts pathway

WHY BUY FROM SLIMLINE

Why buy from Slimline

• Melbourne based, supplying Australia-wide
• 25+ years in commercial display
• End-to-end: scoping, design, supply, install, support
• One supplier for all-in-one, foldable and modular LED
• Android and Dline CMS across the range

carousel

Specifications

Key specifications across the LED range:

columns
Specs	All-in-one	Indoor modular	Outdoor modular
Sizes	108", 135", 162"	Custom, any size	Custom, any size
Pixel pitch	Fixed by model	P1.5 to P3.9	2.5mm to 4.0mm
Brightness	Bright-room rated	Indoor	Up to 6500 nits
Contrast	10,000:1	5000:1	High-contrast
Refresh rate	3840 Hz	3840 Hz or higher	Flicker-free
Install	Mobile or wall	Wall, floor, ceiling	Facade, freestanding
Use	Indoor	Indoor	Outdoor, all-weather

Note: The foldable display is a portable large-format LED for events. Exact pixel pitch, sizing a project, from the current catalogue and at quote.

CMS & INTEGRATION

Android and Dline CMS across the range

All-in-one and modular Dline LED run Android with Dline CMS by OptiSigns, so you can schedule and update content from the cloud, by app or by USB.

Cast wirelessly to the all-in-one displays from up to nine devices or push content to a video wall from one dashboard.

Wi-Fi, Bluetooth and multiple connectivity options are built in, with HDMI on request for a wired feed.

LEARN MORE ABOUT DLINE CMS

START YOUR PROJECT

Planning an LED display or video wall?

Tell us about the space, the audience and how you will use it. Our Melbourne team will recommend the right LED type, scope the project, provide a design and quote. From a single display to a building-scale wall.
